Hermes Control Interface

A self-hosted web dashboard for the Hermes AI agent stack. Manage terminals, files, sessions, cron jobs, token analytics, multi-agent gateways, and team access — all behind a password gate.

Stack: Vanilla JS + Vite · Node.js · Express · WebSocket · xterm.js Version: 3.3.2

Highlights

Chat Revamped — Collapsible tool call cards with JSON viewer, session sidebar with model tags, banner-free output.

RBAC v2 — 28 permissions across 12 groups. Admin, viewer, or custom roles per user.

Multi-Agent Gateway — Start/stop/configure multiple Hermes profiles. Real-time logs. Systemd service management.

Token Analytics — Track sessions, messages, tokens, cost by model, platform, and time range.

Screenshots

Navigation — 8 Pages

Home · Agents · Usage · Skills · Chat · Logs · Maintenance · Files

Dark Mode

Home	Agents

Chat	Usage & Analytics

Skills Hub	Maintenance

File Explorer	Agent Dashboard

Agent Gateway	Agent Sessions

Agent Config	Agent Memory

Agent Skills	Agent Cron

Light Mode

Home	Agents	Skills Hub

Gateway	Memory

Features

🔐 Authentication

• Single password login (configurable via HERMES_CONTROL_PASSWORD)
• bcrypt password hashing (cost factor 10)
• CSRF tokens on all mutating requests
• Conditional Secure cookie flag (auto-detects HTTPS)
• Rate limiting: 5 failed logins per 15 minutes per IP
• Multi-user support with role-based access control (RBAC)

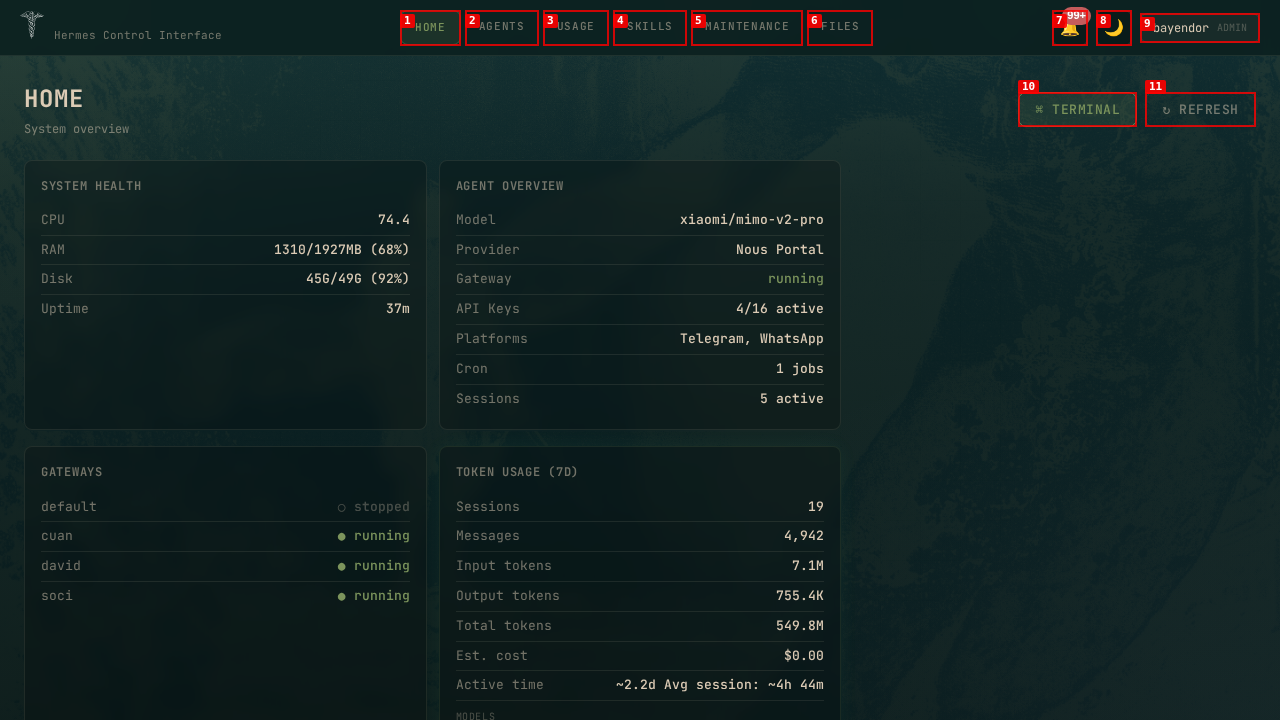

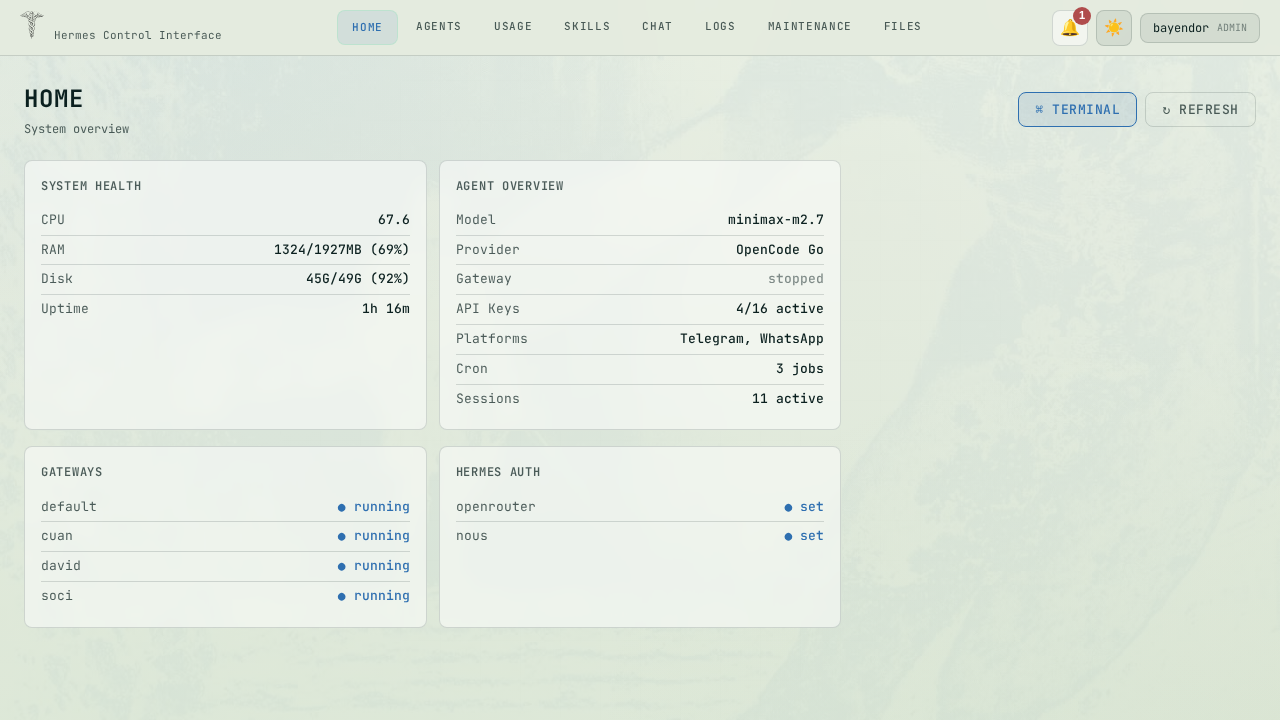

🏠 Home Dashboard

System overview at a glance:

• System Health: CPU usage, RAM usage, Disk usage, Uptime
• Agent Overview: active model, provider, gateway status, configured API keys, active platforms
• Gateway Status: per-profile running/stopped indicators
• Token Usage (7d): sessions count, messages, total tokens, estimated cost, models used, platforms breakdown, top tools

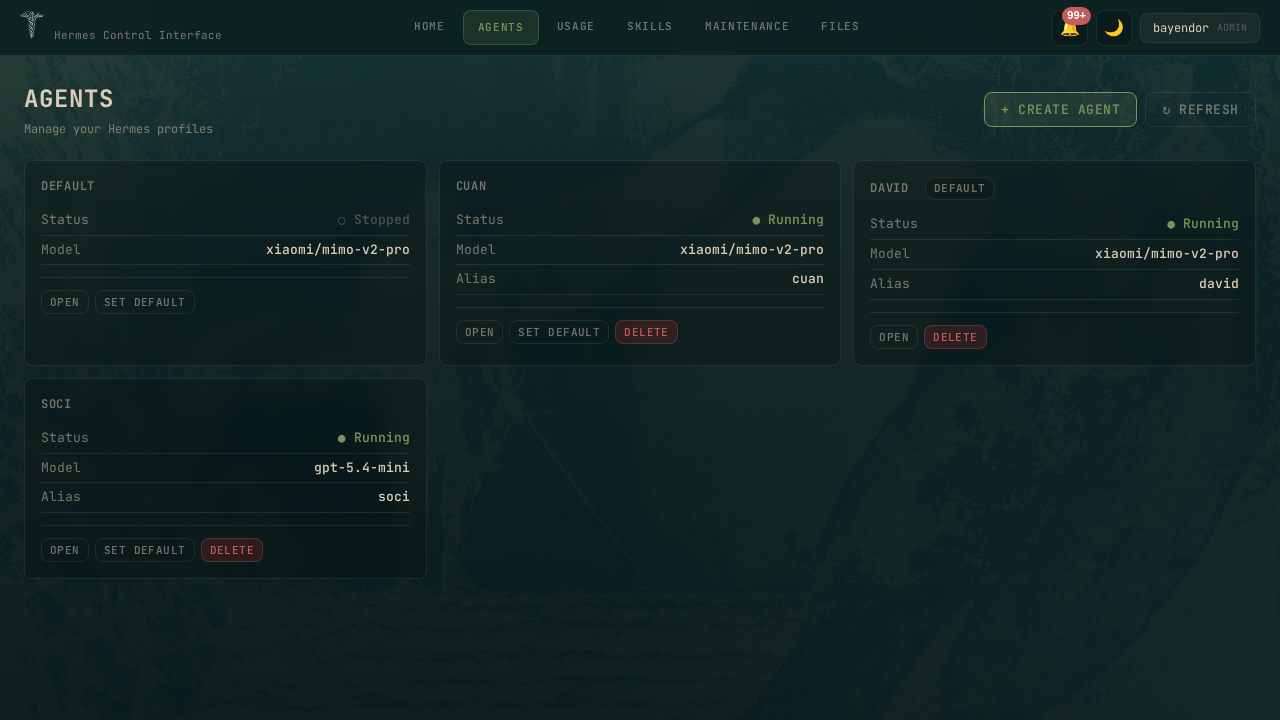

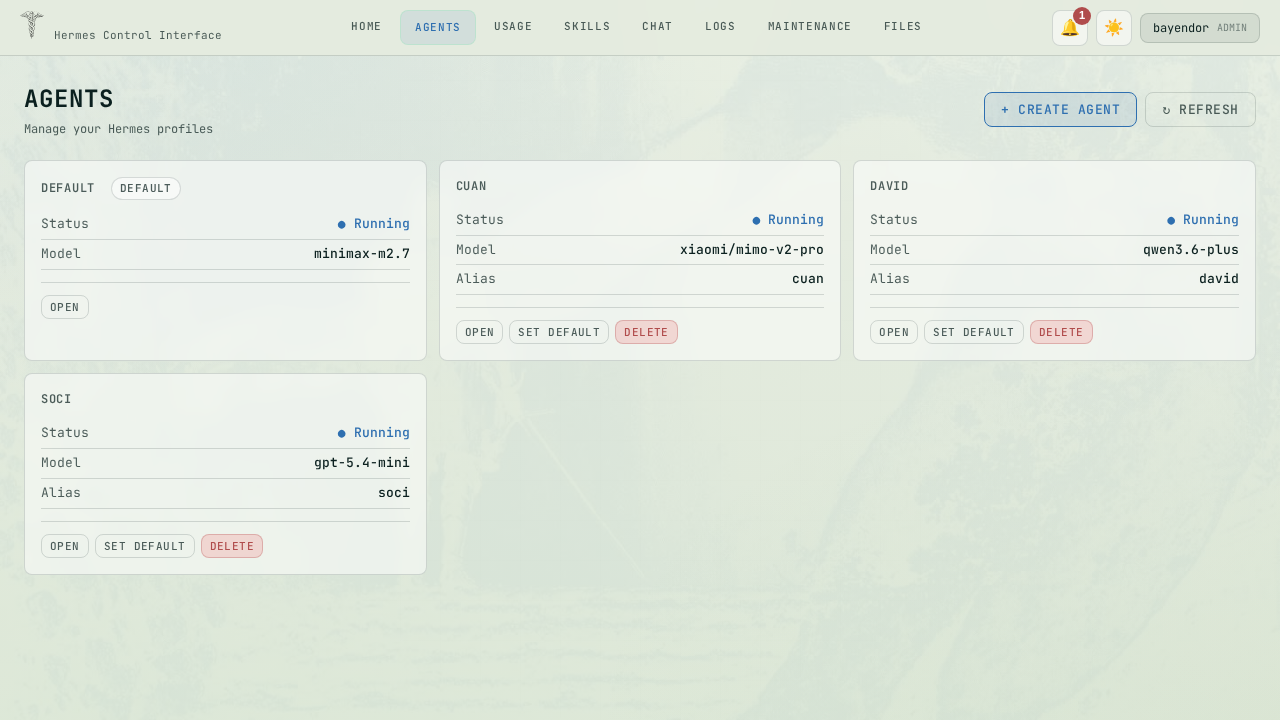

🤖 Agents — Multi-Agent Management

Manage all Hermes profiles from one place:

• List all profiles with status badge (running/stopped) and active model
• Create new profile
• Clone existing profile
• Delete profile
• Set default profile
• Start/Stop/Restart gateway per profile
• Quick gateway log viewer

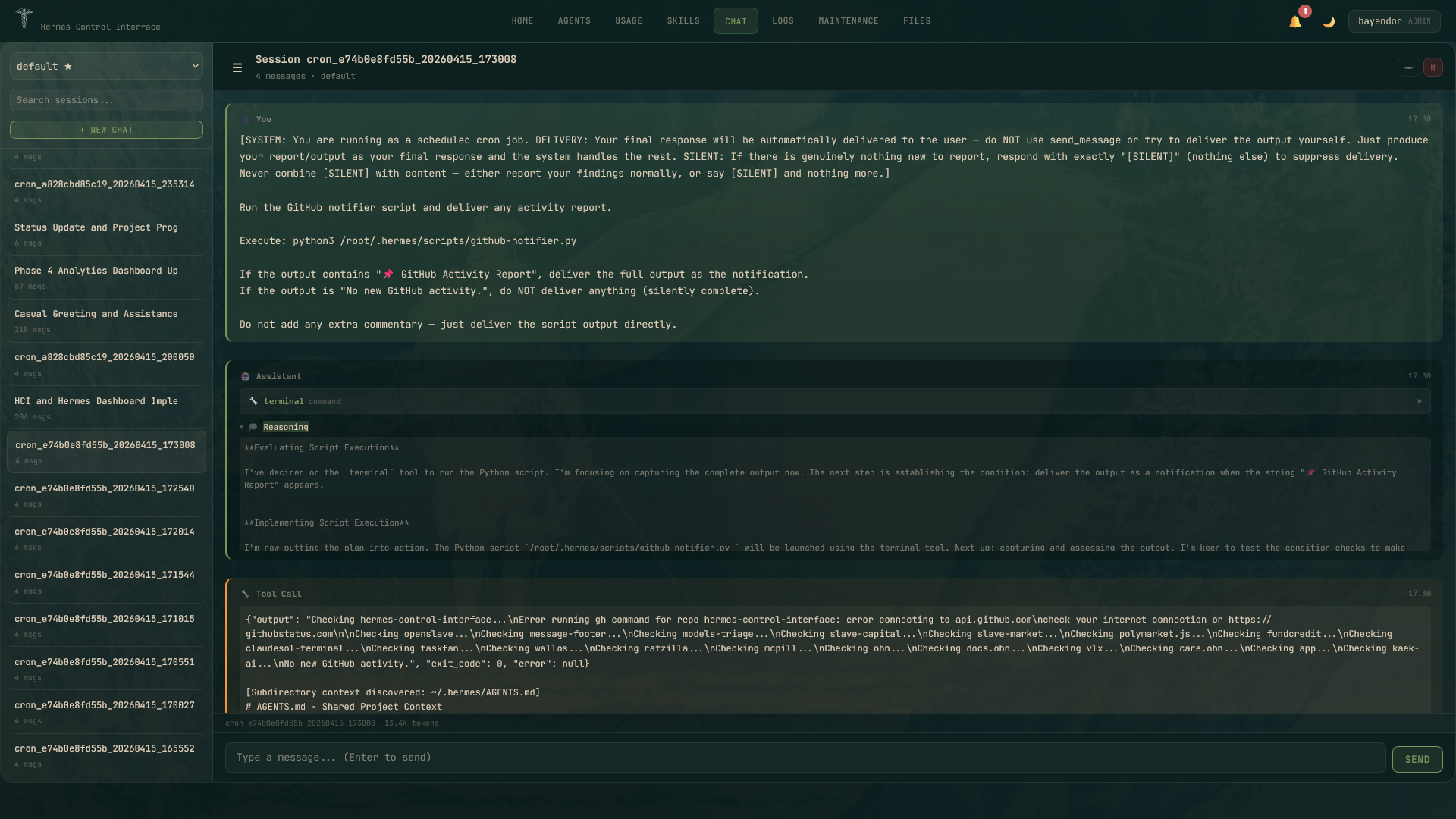

💬 Chat — Revamped Interface

The chat interface got a full overhaul in v3.3.0:

Tool Call Cards

• Each tool call displayed as a collapsible card
• Shows tool name, status (running/success/error), and execution time
• Expand to see full JSON input/output
• Collapsed by default for clean output

Session Sidebar

• List of past chat sessions with timestamps
• Resume any session with one click
• New chat button for fresh session
• Shows active model tag

Clean Output

• Banner suppression (-Q flag) for noise-free responses
• Auto-detects both new (session_id:) and legacy (Session:) session ID formats
• --continue "" (empty) creates new session
• Bare --continue resumes last session

Session Management

• Rename sessions
• Delete sessions
• Export session transcript

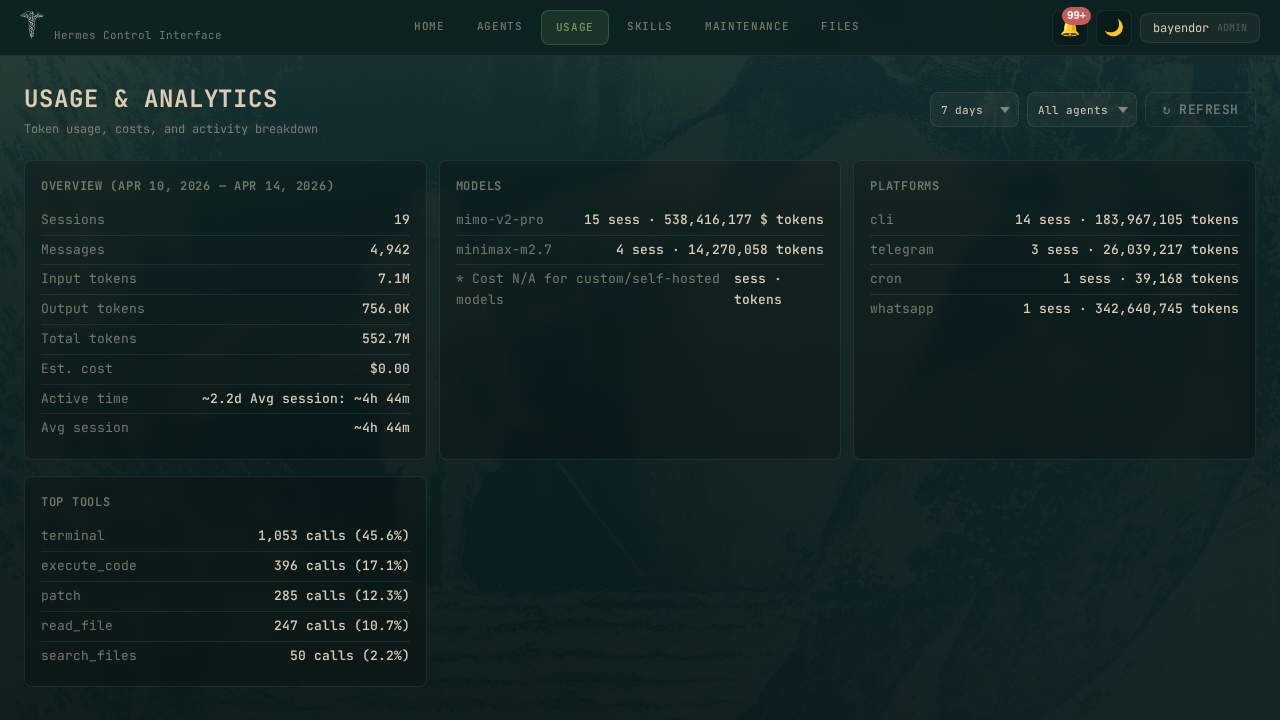

📊 Usage & Analytics — Token Insights

Full breakdown of LLM usage:

• Time Range: Today, 7d, 30d, 90d filters
• Agent Filter: per-profile or all combined
• Overview Cards: total sessions, messages, tokens, cost, active hours
• Models Table: per-model breakdown — sessions count, total tokens, avg tokens/session
• Platforms Table: per-platform breakdown (CLI, Telegram, WhatsApp, etc.)
• Top Tools: most called tools with call counts and success rates

🛠️ Agent Detail — Per-Agent Management

Six-tab interface for deep agent configuration:

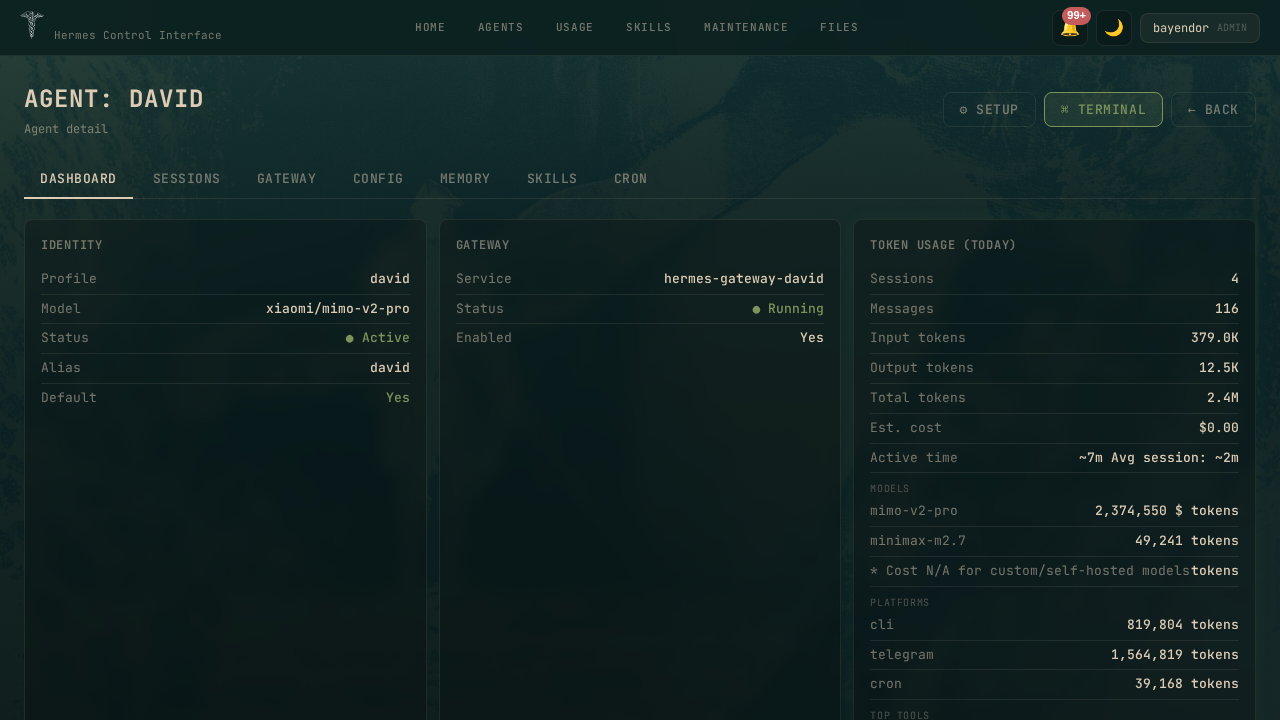

Dashboard Tab

• Agent identity: name, model, provider
• Gateway service status
• Quick token usage summary
• Active platforms

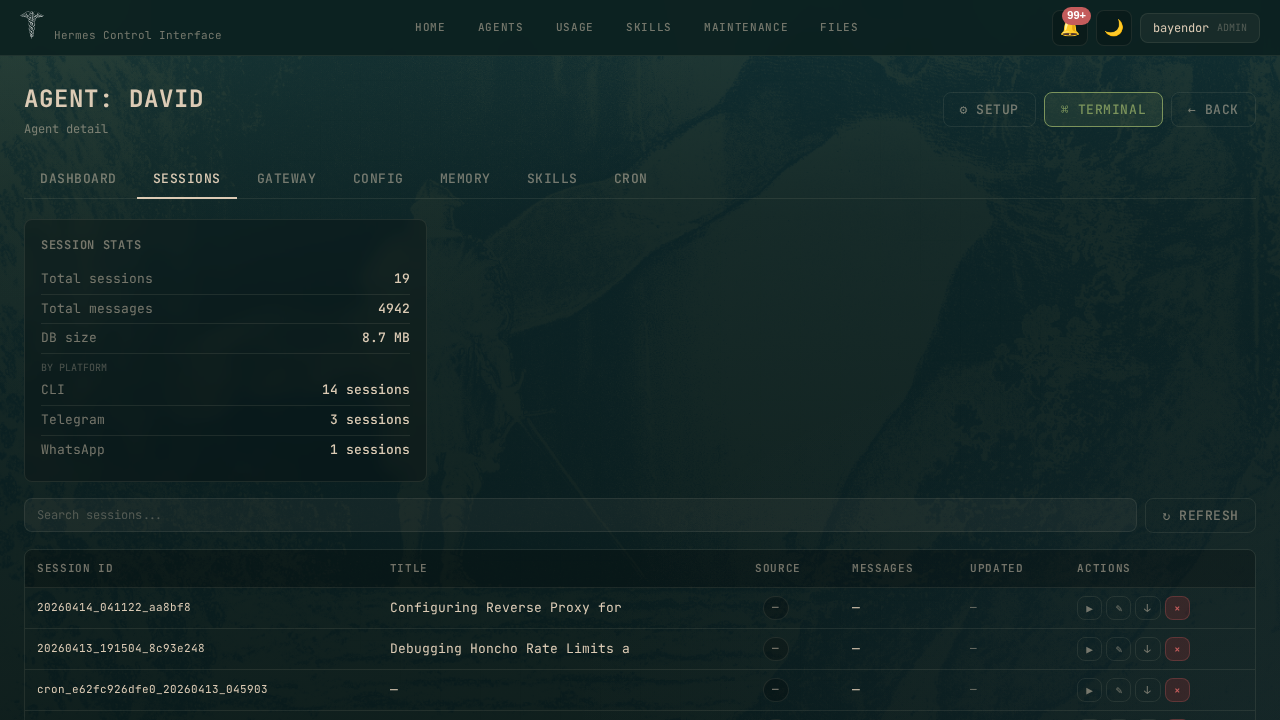

Sessions Tab

• List all sessions for this profile
• Search by keyword
• Rename session
• Delete session
• Export session (JSON format)
• Resume session in CLI (one click)

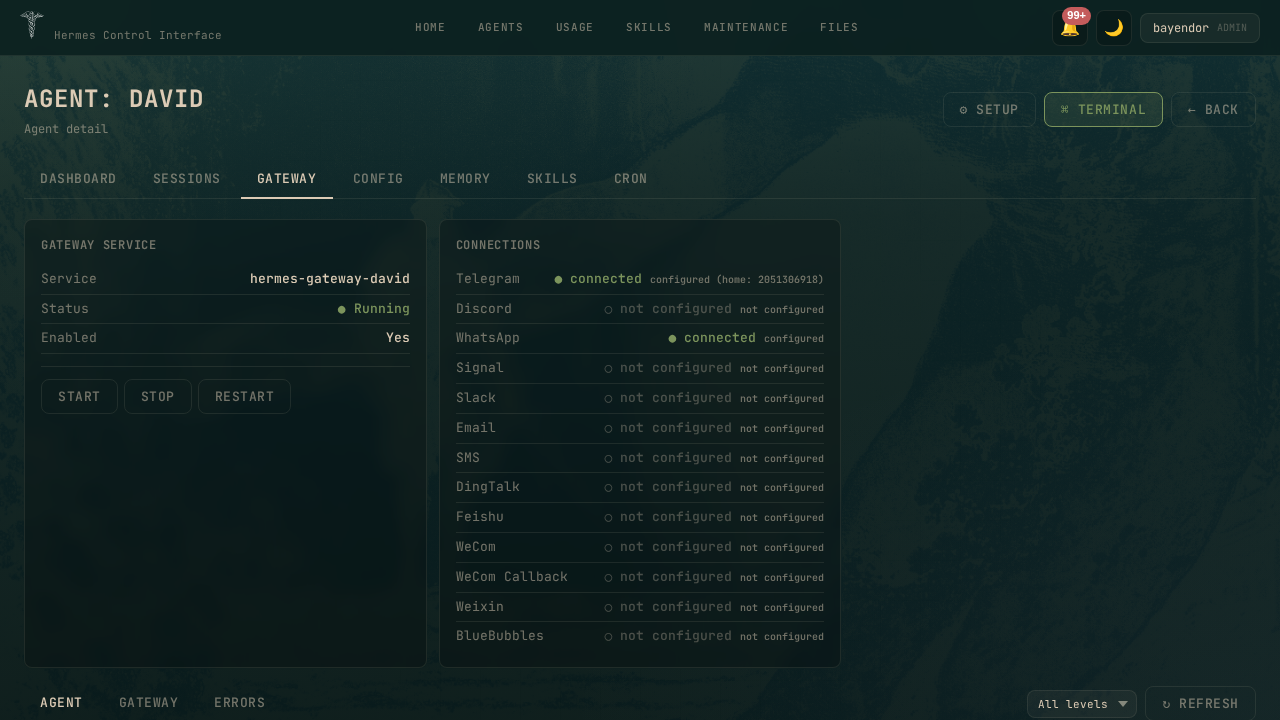

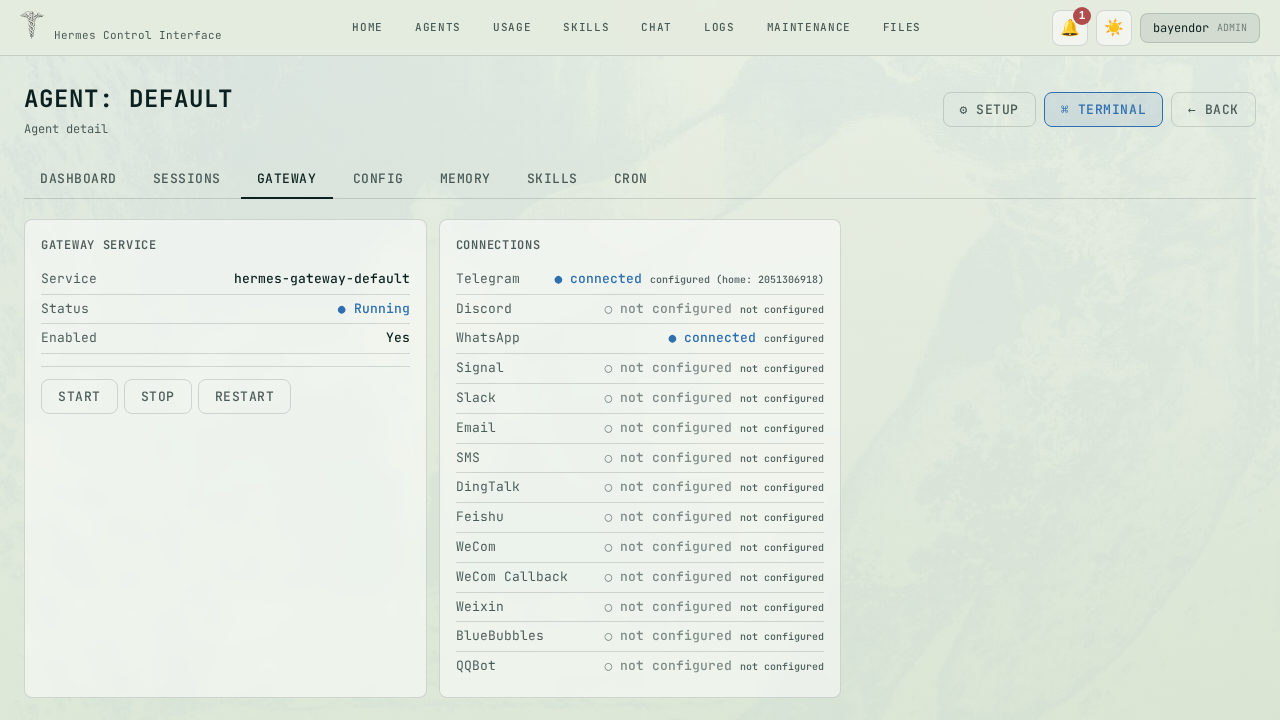

Gateway Tab

• Start/Stop/Restart gateway service
• Real-time log stream (WebSocket)
• Systemd service management (for non-root users: hermes-gateway-<profile>)
• Gateway configuration panel

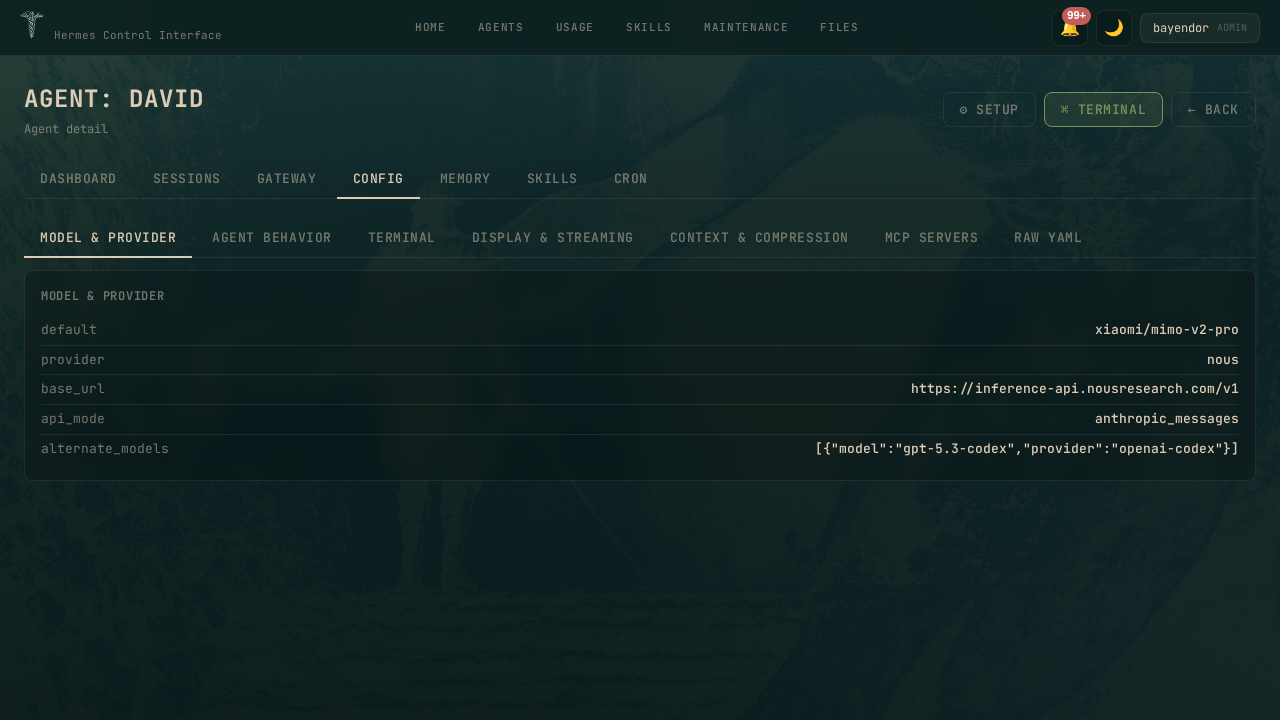

Config Tab

• 13 categories, 80+ settings
• Structured form editor with labeled fields
• Raw YAML editor toggle
• Reset to defaults per category
• Apply changes with validation

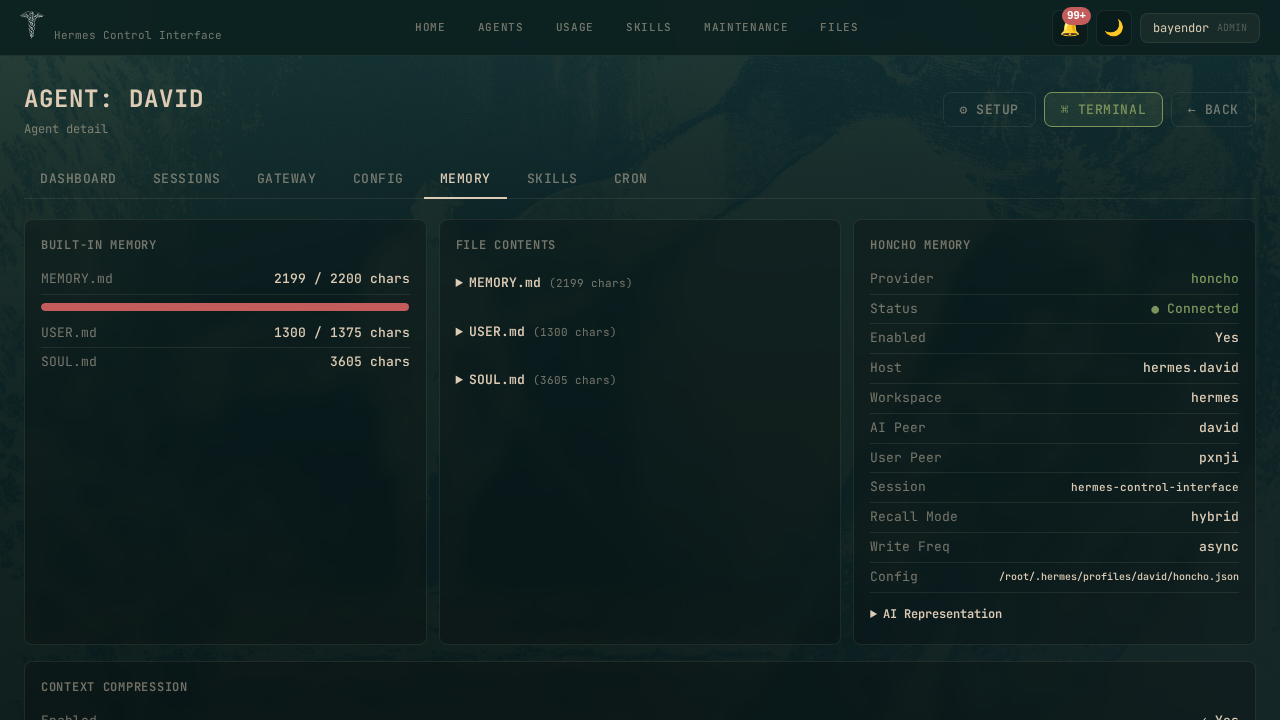

Memory Tab

• Dynamic memory provider panel
• Provider options: Built-in MEMORY.md, Honcho (self-hosted), External providers
• Honcho status: connected/disconnected
• Memory usage stats

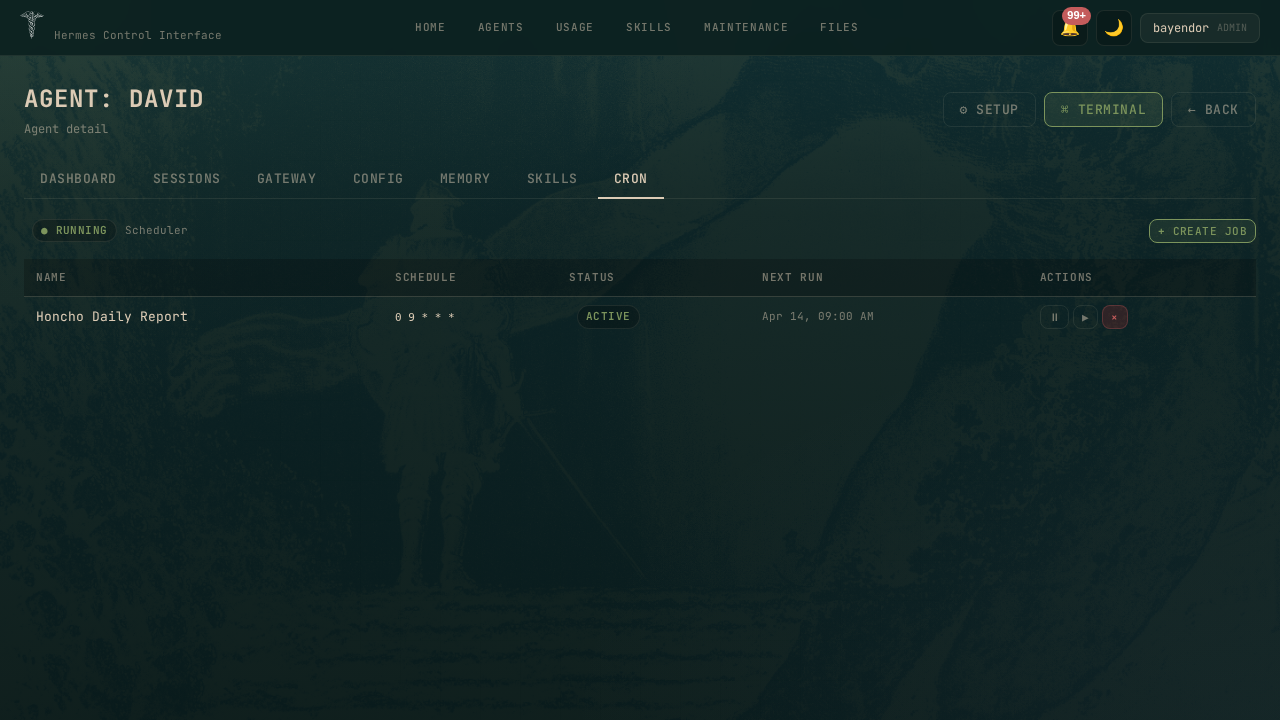

Cron Tab

• List all scheduled jobs for this profile
• Create new cron job with schedule presets (hourly, daily, weekly, custom cron expression)
• Pause/Resume scheduled jobs
• Run job immediately (on-demand)
• Edit/Delete cron jobs
• Next run time display

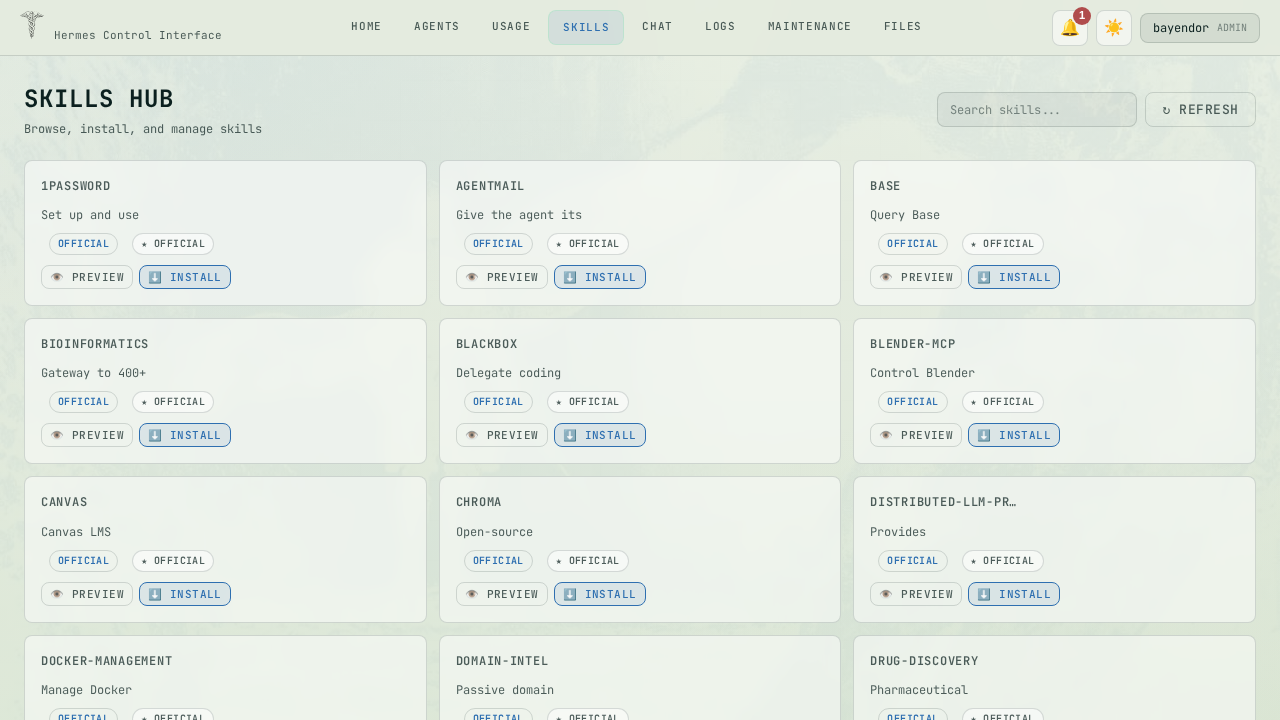

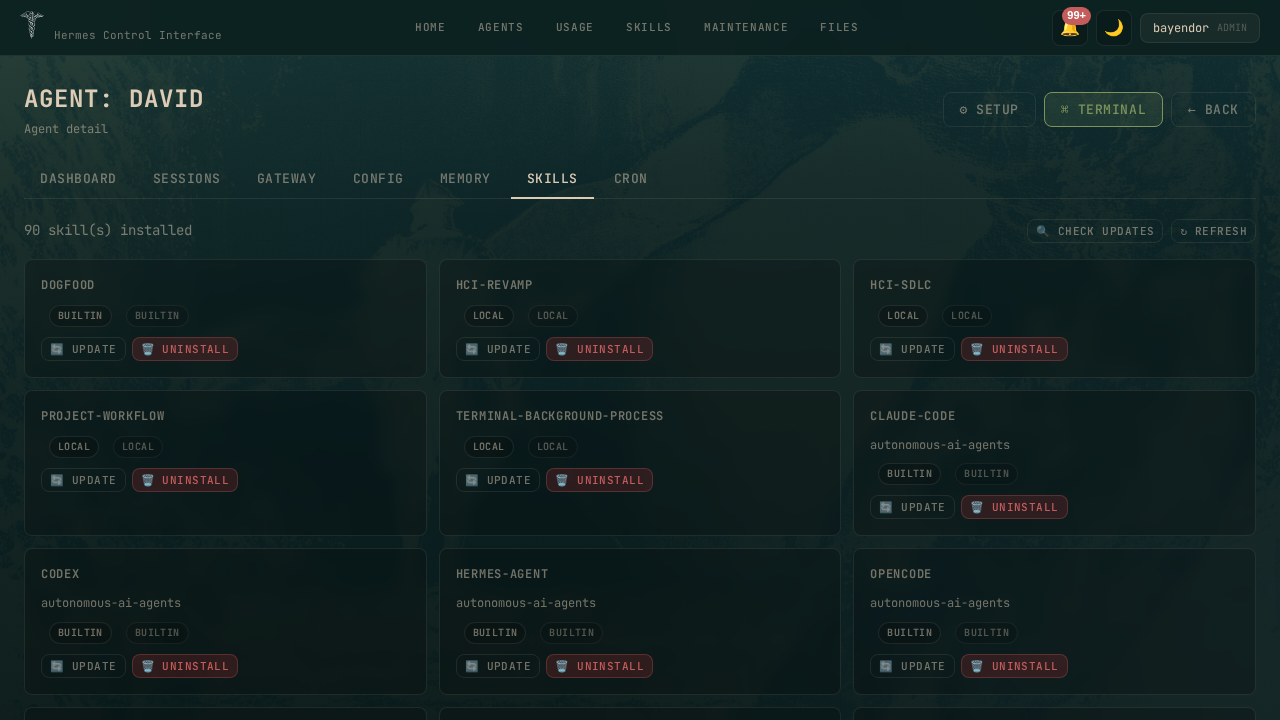

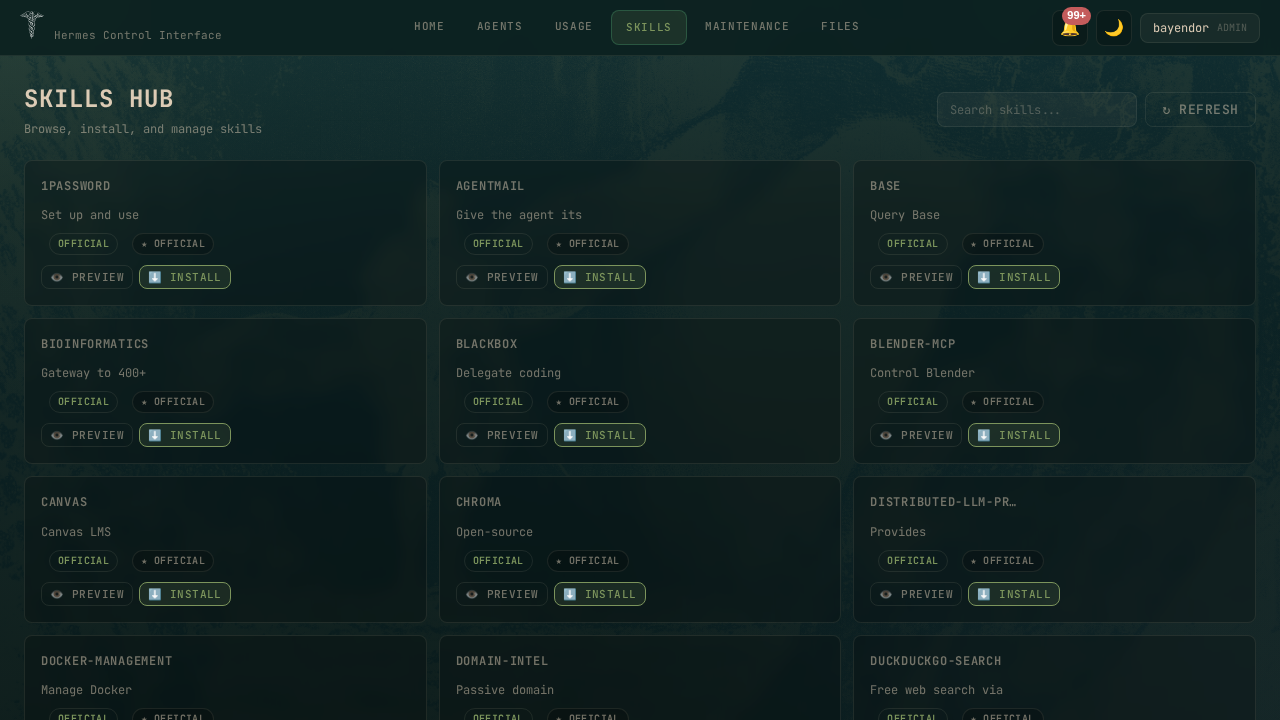

📦 Skills Marketplace

Browse and manage installed Hermes skills:

• Grouped by category (devops, mlops, creative, etc.)
• Shows skill name, description snippet, source (builtin/local), trust level
• Search and filter skills
• Install new skills from the Hermes skills registry
• Check for updates
• Uninstall skills

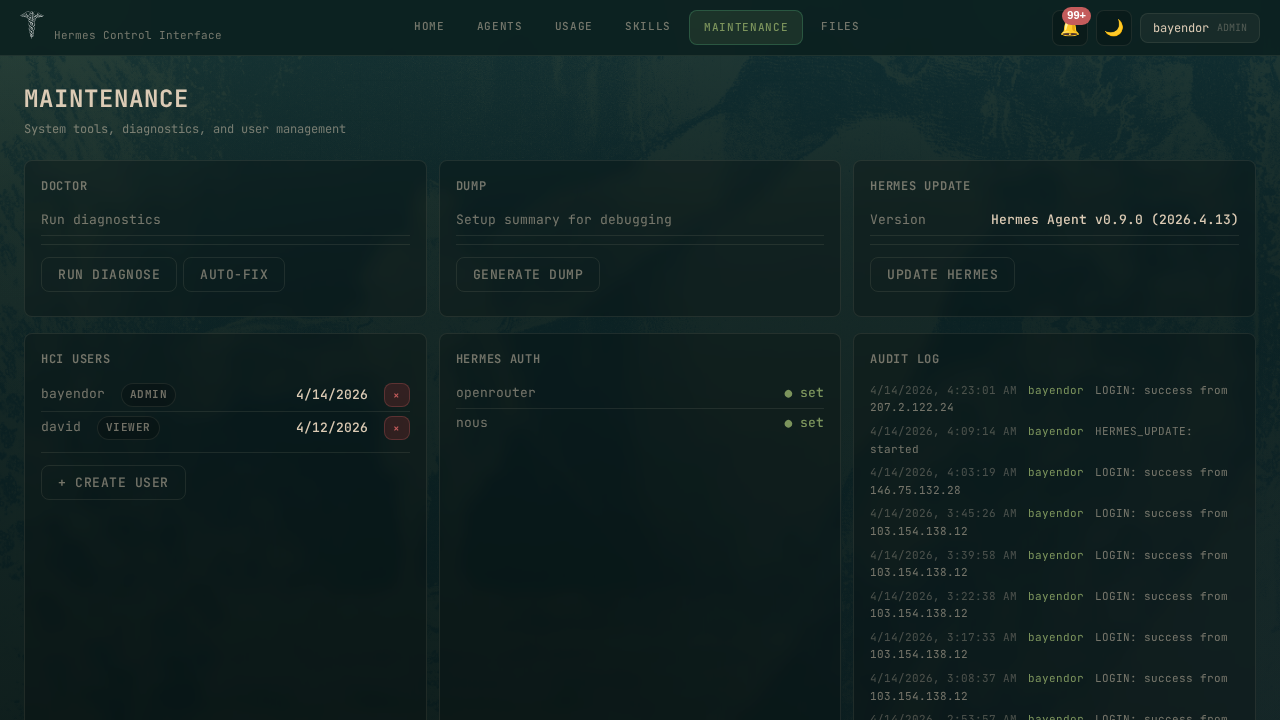

🔧 Maintenance — System Administration

Full admin panel:

• Doctor: Run diagnostics — detects common issues, auto-fix where possible
• Dump: Generate debug summary (system info, config, recent logs)
• Update: Update Hermes agent to latest version
• Backup: Download all Hermes data as a zip file
• Import: Restore from backup zip
• HCI Restart: Restart the Control Interface web server from UI (no SSH needed)
• Users (NEW in v3.3.0): Create/edit/delete users, assign roles, manage permissions
• Auth: View provider status (OpenRouter, Nous Portal, etc.), add/remove API keys
• Audit: Timestampped activity log — who did what and when

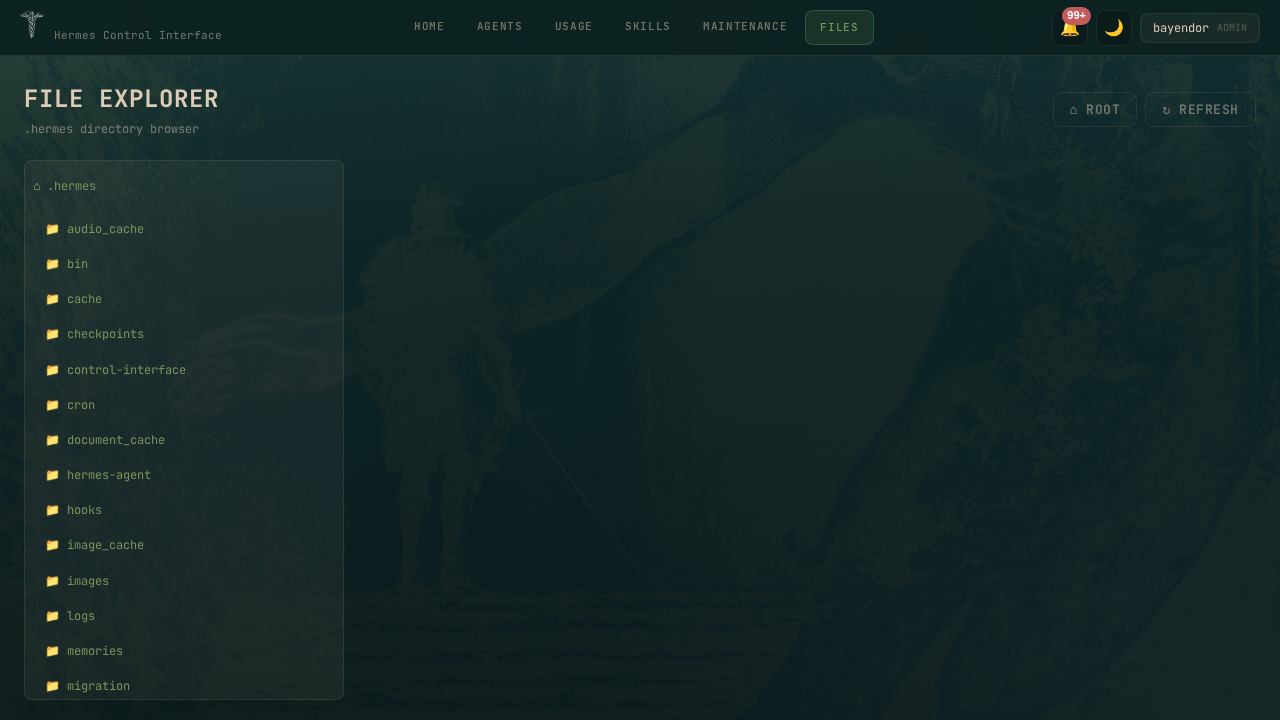

📁 File Explorer

Split-view file editor:

• Left panel: Directory tree browser
• Right panel: Text editor with syntax highlighting
• Save: Write changes back to disk
• Secure: Paths scoped to ~/.hermes, traversal attacks prevented
• Multiple roots: Configurable via HERMES_CONTROL_ROOTS

💻 Terminal

Real browser-based terminal:

• Full PTY via node-pty + xterm.js over WebSocket
• Touch-friendly controls (↑↓␣↵) for mobile
• Fullscreen toggle
• Auto-cleanup flow: Ctrl+C → clear → ready for next command
• Rate limited: 30 commands/minute per IP

🔔 Notifications

• Bell icon with unread count badge (top-right)
• Dropdown panel with notification list
• Dismiss individual or clear all
• Sources: system alerts (disk/RAM/CPU), gateway events, session CRUD, user management
• Persistent: stored in ~/.hermes/hci-notifications.json

🎨 Theme

• Dark mode (default): #0b201f background, #dccbb5 foreground, #7c945c accent
• Light mode: #e4ebdf background, #0b201f foreground, #2e6fb0 accent
• Toggle via header button
• Preference persisted in localStorage
• Login page: themed background image with overlay

🔒 Security

• Multi-user RBAC: 28 permissions across 12 groups
• Roles: admin (full access), viewer (read-only), custom (your choice)
• bcrypt password hashing (cost factor 10)
• CSRF tokens on all mutating requests
• Secure cookie flag (auto-detects HTTPS)
• WebSocket origin verification (exact match)
• Input sanitization: strict regex on all user inputs (profiles, sessions, titles, filenames)
• Path traversal prevention in file explorer
• Rate limiting: login (5 failed/15min), terminal exec (30/min)
• XSS protection: all dynamic values escaped in rendered HTML
• Admin gate: critical endpoints (/api/plugins, etc.) require admin role
• Token cleanup: automatic session token cleanup every 15 minutes
• Unhandled exception handlers: unhandledRejection + uncaughtException caught and logged

See full security audit: docs/SECURITY_AUDIT.md

Where HCI Can Be Installed

HCI runs as a single Node.js process — any server environment that supports Node.js works.

Requirements

Dependencies (installed via npm install):

• express — HTTP server
• ws — WebSocket
• node-pty — PTY support (requires build tools)
• xterm.js — Terminal emulator in browser
• bcrypt — Password hashing
• cookie-parser, dotenv, js-yaml, etc.

Installation Methods

Manual (Recommended)

# 1. Clone
git clone https://github.com/xaspx/hermes-control-interface.git
cd hermes-control-interface

# 2. Install dependencies
npm install

# 3. Configure
cp .env.example .env
# Edit .env and set:
#   HERMES_CONTROL_PASSWORD=your-secure-password
#   HERMES_CONTROL_SECRET=$(openssl rand -hex 32)

# 4. Build frontend
npm run build

# 5. Start
npm start

Access at http://localhost:10272 (default PORT).

Systemd Service (Production)

# Use the provided gateway service script as reference
bash scripts/setup-gateway-service.sh

Or create a simple systemd unit:

# /etc/systemd/system/hermes-control.service
[Unit]
Description=Hermes Control Interface
After=network.target

[Service]
Type=simple
User=root
WorkingDirectory=/path/to/hermes-control-interface
ExecStart=/usr/bin/node server.js
Restart=always

[Install]
WantedBy=multi-user.target

sudo systemctl enable hermes-control
sudo systemctl start hermes-control

Environment Variables

Reset Password Without Dashboard Access

If you can't log in to the dashboard, reset the password via CLI:

Option 1 — Edit .env directly

# SSH into your server
nano ~/.hermes/.env
# Change HERMES_CONTROL_PASSWORD=your-new-password

# Restart
sudo systemctl restart hermes-control
# or: pkill node; npm start &

Option 2 — Generate bcrypt hash via Node.js

node -e "const bcrypt=require('bcrypt'); bcrypt.hash(require('crypto').randomBytes(24).toString('hex'), 10).then(h=>console.log('HERMES_CONTROL_PASSWORD='+h))"
# Copy the output to .env, then restart

Key point: .env is the source of truth. Dashboard access = server access. If you lose access to both, you must have server/SSH access to reset.

Architecture

src/                    # Vite source (ES modules)
├── index.html          # Entry point
├── js/main.js          # App logic (~4800 lines, modular sections)
├── css/
│   ├── theme.css       # Color palette (dark/light)
│   ├── layout.css      # Topbar, modals, dropdowns, sidebar
│   └── components.css  # Cards, tables, forms, editor, file explorer
├── public/
│   └── favicon.svg     # Served unhashed
└── assets/             # SVG icons

dist/                   # Vite build output (served by Express)
server.js               # Express + WebSocket + PTY + API (~2300 lines)
auth.js                 # Multi-user auth + RBAC (bcrypt, sessions, permissions)

Development

# Edit source in src/
npx vite build

# Restart (never in foreground — use detached)
kill $(lsof -t -i:10272) 2>/dev/null
nohup node server.js &>/dev/null & disown

API

100+ endpoints covering:

• Auth: login, logout, session management, setup
• Users: CRUD, role assignment, permission management, reset password
• Sessions: list, rename, delete, export, resume
• Profiles: list, create, clone, delete, use, gateway control
• Chat: send message, stream response, tool calls
• Cron: list, create, pause, resume, run, remove
• Config: read, write, YAML parsing, reset
• Memory: provider-specific panels (MEMORY.md, honcho, external)
• Skills: list, parse, search, install, uninstall, check updates
• Files: list, read, write, save (scoped to Hermes home)
• System: health, insights, usage analytics, doctor, dump, update, backup
• Notifications: list, dismiss, clear
• Plugins: admin-only plugin management
• Terminal: exec command via PTY
• Audit: activity log

See docs/API.md for full reference.

Security Audit

Full audit report: docs/SECURITY_AUDIT.md Score: 7.0/10 — Production-ready.

Issues found and fixed in v3.3.0:

• XSS in home cards (loadHomeCards()) — fixed with escapeHtml()
• Missing admin gate on plugins API — fixed
• Terminal exec rate limit — 30 commands/minute per IP
• Token cleanup interval — now runs every 15 minutes

Updating HCI

# 1. Pull latest code
cd /root/projects/hermes-control-interface
git pull origin main

# 2. Install dependencies (if package.json changed)
npm install

# 3. Rebuild frontend
npm run build

# 4. Restart production server
kill $(lsof -t -i :10272) 2>/dev/null
nohup node server.js &>/dev/null & disown

Or use the HCI UI: Maintenance → HCI Restart (restarts from browser).

Non-root users: Replace /root/projects with your user's project directory. If running via systemd, use sudo systemctl restart hermes-control.

Changelog

v3.3.2 (2026-04-17)

🐛 Bug Fixes:

• HTTP-only deployments: Disable upgrade-insecure-requests CSP directive that broke UI on Tailscale/LAN/dev environments
• HOST env var: Support HOST env var for non-localhost server binding (Tailscale IP, LAN, specific interface)

🤝 Contributors:

• @hifiguy — 2 fixes (HOST env + CSP HTTP fix)

v3.3.0 (2026-04-17)

💬 Chat Revamp:

• Tool call cards: collapsible cards with JSON viewer, collapsed by default
• Banner suppression: -Q flag passed to hermes for clean output
• Session sidebar: model tag, session list, resume/new chat buttons
• Auto-detect session ID format: new (session_id: YYYYMMDD_HHMMSS_HEX) and legacy (Session: YYYYMMDD_HHMMSS_HEX)
• --continue "" (empty) creates fresh session; bare --continue resumes last session

👥 User Management v2 (RBAC):

• 28 permissions across 12 groups: Sessions, Chat, Logs, Usage, Gateway, Config, Secrets, Skills, Cron, Files, Terminal, Users, System
• Built-in roles: admin (full access), viewer (read-only), custom role
• Create/edit user modal: role presets (Admin/Viewer), grouped permission checklist, reset password button
• Permission gating on 9 previously-unprotected endpoints

🔒 Security:

• Full security audit (docs/SECURITY_AUDIT.md) — score 7.0/10
• XSS fix: loadHomeCards() now escapes all dynamic values with escapeHtml()
• Rate limiter: terminal exec limited to 30 commands/minute per IP (429 on exceeded)
• Token cleanup: proper setInterval() every 15 minutes (was only on token creation)
• Admin-only gate: GET /api/plugins now requires admin role
• Full activity audit log: Maintenance → Audit panel

📦 Skills:

• Check updates: handles "unavailable" source status gracefully (info message, not error)
• Uninstall: uses stdin pipe (echo y |) instead of unsupported --yes flag

🐛 Bug Fixes:

• Notification dismiss: backend handles both /api/notifications/:id/dismiss and /api/notifications/dismiss
• Sidebar: responsive CSS, flex-shrink:0, mobile breakpoints at 480px
• Agent dropdown: follows dark/light theme correctly
• Favicon 404 loop: moved to public/ to prevent Vite hash mismatch
• HCI Info panel: version, GitHub link, Twitter @bayendor link in Maintenance

📝 Docs:

• Security audit report (12 categories)
• Removed outdated script references (install.sh, reset-password.sh)
• Screenshots: 13 dark mode, 6 light mode

v3.2.0 (2026-04-14)

⚡ Performance:

• Insights speed: 60s+ timeout → 0.65s via IPv4 adapter on model_metadata.py
• Timeouts reduced: 10s → 5s (model metadata), 5s → 3s (llama.cpp props)

🔒 Security:

• WebSocket origin: exact match (was substring check)
• Body limit: 10MB → 1MB global, 10MB only on avatar upload
• Temp files: crypto.randomUUID() (no predictable paths)
• Skills install/uninstall: execHermes() instead of shell interpolation
• Username validation: 2-32 chars, alphanumeric/_.- only

✨ Features:

• Log tabs: Agent, Error, and Gateway logs now working
• Non-root user support: dynamic HCI identity, HOME-aware paths
• Gateway service: auto-detect hermes-gateway-<profile> for non-root

🐛 Fixes:

• Terminal flow: transcript handling after sendCommand
• XSS: 15+ escaped user-facing error messages
• Auth panel: data loaded async, doesn't block page load
• CPR stripping: removed ANSI escape from terminal

v3.1.0 (2026-04-12)

• Skills Hub + Honcho panel + Gateway connections
• HTTPS support
• Maintenance UI: Backup & Import, HCI Restart buttons

License

MIT

Credits

Built for the Hermes Agent ecosystem.

@bayendor — GitHub: xaspx
